• Mechanical Test Indicators 3808, 3908, 3809, 3909 Series

  • Product Code: 3909AC
  • Manufacturer: Starrett
  • Original: USA
  • Warranty: 12 months
  • Price: 00 vnđ

  FEATURES:
Standard: DIN 2270
- Precision gear driven design with smooth, jewelled movement

- Frictionally adjustable contact point reverses automatically, always maintaining clockwise hand specification.
- All items with cat no. ending "A" are supplied with 9.5mm and 4mm dovetail clamps -2 attachments.
- All items with cat no. ending "AC" are supplied with 9.5mm and 4mm dovetail clamps, 4mm swivel post holder, tool post holder, universal snug and post assembly - 6 attachments.



SPECIFICATIONS:

Model Range Resolution Dial Reading Contents Price
3809MA 5mm 0.02mm 0-100 1,2,3,4,A,B,C,G in case
3809MAC 5mm 0.02mm 0-100 1,2,3,4 only
3909MA 5mm 0.02mm 0-50-0 1,2,3,4,A,B,C,G in case
3909MAC 5mm 0.02mm 0-50-0 1,2,3,4 only
3808MA 0.2" 0.001" 0-100 1,2,3,4,A,B,C,G in case

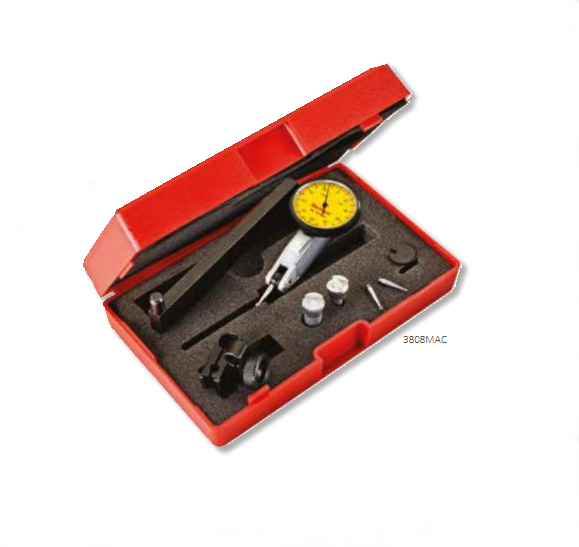

3808MAC 0.2" 0.001" 0-100 1,2,3,4 only
3 0.2" 0.001" 0-100 1,2,3,4,A,B,C,G in case
3809 0.2" 0.001" 0-100 1,2,3,4 only
3809 0.2" 0.001" 0-50-0 1,2,3,4,A,B,C,G in case
3809 0.2" 0.001" 0-50-0 1,2,3,4 only
