BOWERS INSTRUMENT
>
Portable Thickness Gauging
>
Ultrasonic Thickness Gauge IPX-251H
Tài liệu kèm theo

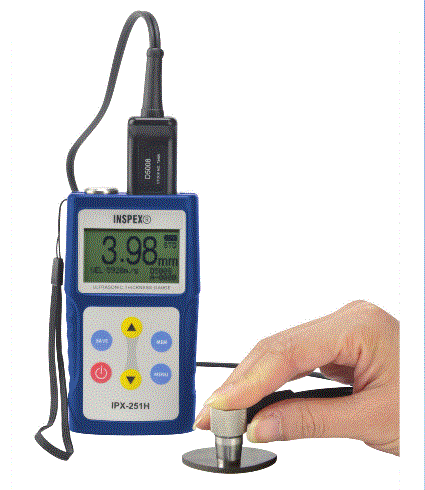

Ultrasonic Thickness Gauge IPX-251H
Product Code:
IPX-251H
Manufacturer:
Bowers
Original:
UK
Warranty:
12 months
Price:
00 vnđ
Product Details
Album
Video clip
Similar products
Features
• Pocket size, easy to operate
• Automatic probe Zero calibration
• Automatic probe identification
• Display resolution: 0.01mm/ 0.1mm selectable
• Measuring range: 0.65 – 400 mm (range depends on probe‐material combination)
• Suitable for various materials such as steel, stainless steel, aluminium, glass, polystyrene, polyethylene
• Limit setting: With Low‐High Indication and alarm
• Memory: 5000 readings with location number
• Data output: USB to PC
• Temp. of material: ‐15°C - 55°C (with standard probe)
• Power Supply: AAA dry cell 1.5 V (2 Pcs) (NOT SUPPLIED)
Standard Delivery
• Main unit
• Standard 5MHZ transducer
• Built‐in calibration block 4mm
• Software + cable
• Manual
• INSPEX certificate
• Carrying case
• Main unit
• Standard 5MHZ transducer
• Built‐in calibration block 4mm
• Software + cable
• Manual
• INSPEX certificate
• Carrying case
Freg.
Meas. Range (mm)
Diam
Temp.
°
C
5.0 Mhz
0.8 - 400
11.0
< 60
°
C
5.0 Mhz
3.0 - 200
15.2
< 350
°
C
7.5 Mhz
0.7 - 50
9.0
< 60
°
C
10.0 Mhz
0.65 - 20
6.0
< 60
°
C
2.0 Mhz
2.0 - 400
17.0
< 60
°
C
Display
128 x 64 with backlight
Measuring range
0.64 - 400mm
Velocity rate
1000 - 9999m/s
Resolution
0.1mm / 0.01mm selectable
Measuring units
mm / inch
Accuracy
±0.04mm (when thickness <9.99mm)
Average mode
2~9 times average measurement
Limit setting
Low - High indication and alarm
Memory
5000 readings with location number
Data output
USB to PC
Surface temperature
-15
°
C to + 350
°
C
Battery Indicator
Low battery indicator
Power supply
2 Pcs AAA dry cell (NOT SUPPLIED)
Battery lifework
48 hours continuously (without backlight)
Dimensions
115 x 64 x 27mm
Weight
220g
