Portable Coating Thickness Gauging
>

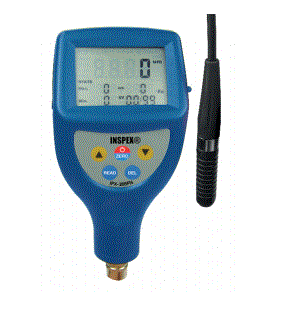

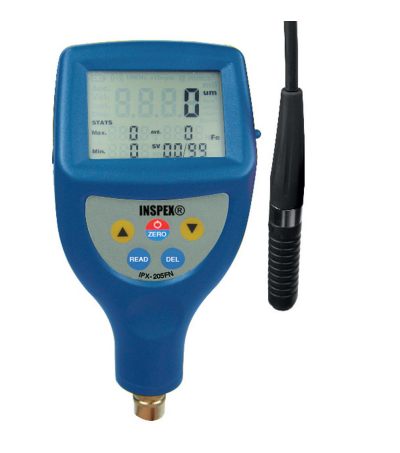

Coating Thickness Gauge IPX-205FN
Tài liệu kèm theo
Coating Thickness Gauge IPX-205FN
Product Code:
IPX-205FN
Manufacturer:
Bowers
Original:
UK
Warranty:
12 months
Price:
00 vnđ
Product Details
Album
Video clip
Similar products
Features
• External probe
• Large LCD display with backlight
• Storage of 99 groups of measurements
• Non-magnetic coating or ferrous substrates
• Automatic substrate recognition
Standard Delivery
• Main unit with FN probe
• Calibration foils
• Substrate (Iron)
• Substrate (Aluminium)
• Carrying case
• Manual
• Inspex Certificate
Optional Accessories
• RS-232 Data output cable
• Software
• USB adaptor for RS-232
Principle
F: Magnetic induction; N: Eddy current
Measuring range
0-1250 um/0-50mil
Resolution
0.1 um (0-99um)/1 um (over 100um)
Accuracy
+/- 1-3% or +/-2.5um or +/-0.1mil
Measuring mode
Single or continuous
Min radius workpiece
Convex: F:1.5mm/N:3mm
Concave: F:25mm/N:50mm
Min measuring area
6mm
Min sample thickness
0.3mm
Power supply
2x1.5V AAA (UM-4) battery (not included)
Battery indicator
yes
Auto switch off
Manual or automatic switch off
Dimensions
126mm x 65mm x 35mm
Weight
81gr
