Features

• With external probes

• Magnetic induction / eddy current measuring principle

• Non-magnetic coating on ferrous substrates and insulating coating on non-ferrous conductible substrates

Standard Delivery

• Main unit

• F type probe

• N type probe

• F calibration base set

• N calibration base set

• Calibration foils (4 pcs)

• Carrying case

• Manual

• INSPEX certificate

Optional Accessories

• RS-232 Data output cable

• Software

Principle	F: Magnetic induction; N: Eddy current
Measuring range	0-1250 um/0-50mil
Resolution	0.1 um (0-99um)/1 um (over 100um)
Accuracy	+/- (1~3%n) or ±2.5µm or ±0.1mil
Measuring mode	Single or continuous
Min radius workpiece	F: Convex: 1.5mm/ Concave 25mm
	N: Convex: 3.0 mm/ Concave 50mm
Min measuring area	6mm
Min sample thickness	0.3mm
Power supply	4x1.5V AAA (UM-4) battery (not included)
Battery indicator	Low battery indicator
Auto switch off	Automatically shut-off
Dimensions	125mm x 62mm x 28 mm
Weight	85gr

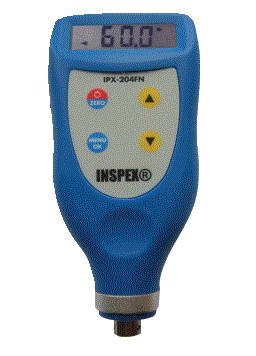

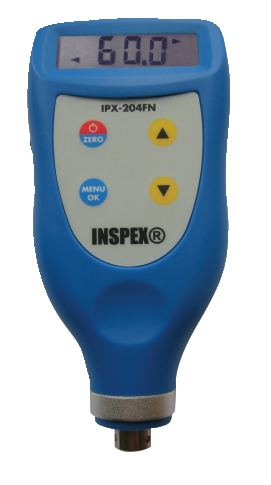

Coating Thickness Gauge IPX-204FN

Mã SP: IPX-204FN

Giá: 00 vnđ

Coating Thickness Gauge IPX-205FN

Mã SP: IPX-205FN

Giá: 00 vnđ

Mã SP: IPX-206FN

Giá: 00 vnđ

Mã SP: IPX-210FN

Giá: 00 vnđ

Mã SP: IPX-201F

Giá: 00 vnđ
