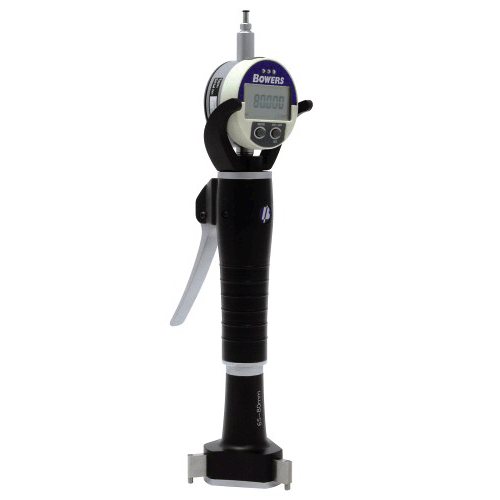

XTL Lever Bore Gauge

The robust new Bowers XTL Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-fl oor conditions. The XTL has a simple ergonomic action and can be fi tted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, PCs etc. The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 300mm.

Features:


•   Measuring range 6-100mm (diameters above 100 on request)
•   Excellent for vertical bore measurement
•   Simple 2-button operation
•   3 preset memories
•   RS-232 output
•   Self-centering heads
•   Constant measuring pressure
•   Fast, accurate measurement
•   Resolution 0.001mm (0.00005”)
•   Tungsten carbide measuring faces on all 3-point heads from 12.5mm
•   Blind bore measurement above 12.5mm (0.500”)
•   Extensions available for deep hole measurement
•   Setting rings included with individual instruments and sets
•   UKAS certifi cates supplied as standard with all setting rings
•   UKAS certifi cates supplied with all gauges
•   Serial number on all gauges and measuring heads
•   Heads with special anvils available to suit specifi c customer requirements (e.g. Threads,  grooves, 2-point, spherical, splines etc)
•   Bore gauges manufactured according to DIN 863, part 4
