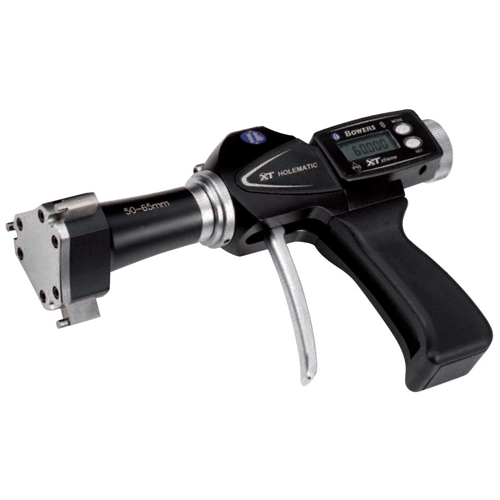

XT Holematic Digital Pistol-grip Bore Gauges

The Bowers XT Holematic bore gauge incorporates an ergonomic pistol grip handle with an advanced trigger action, giving the user the advantages of both speed of operation and a constant measuring pressure. The clear digital display, superior IP65 electronics and application range of 2 to 300mm ensures ease of use and assured accuracy.
The XT Holematic pistol grip range of bore gauges can be supplied as individual instruments or in complete sets. All XT instruments give the user the advantage of extended measuring travel with fi xed anvils and UKAS certifi cation of both measuring head and setting ring as standard.

Features:

•   IP65 Electronics
•   Simple 2-button operation
•   Large easy-to-read swivel display
•   3 preset memories
•   RS-232C output
•   Self-centering heads
•   Constant measuring pressure
•   Fast, accurate measurement
•   Range 2 – 300mm (0.080” – 12”)
•   2 – 6mm 2 point/ 6 – 300mm 3 point measurement
•   Resolution 0.001mm (0.00005”)
•   Tungsten carbide measuring faces on all 3-point heads from 12.5mm
•   Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
•   Extensions available above 6mm for deep hole measurement
•   Setting rings included with individual instruments and sets
•   UKAS certifi cates supplied as standard with all setting rings
•   UKAS certifi cates supplied as standard with all pistol-grip gauges
•   Serial number on all gauges and measuring heads
•   Heads with special anvils available to suit specifi c customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
•   Bore gauges manufactured according to DIN 863, part 4
