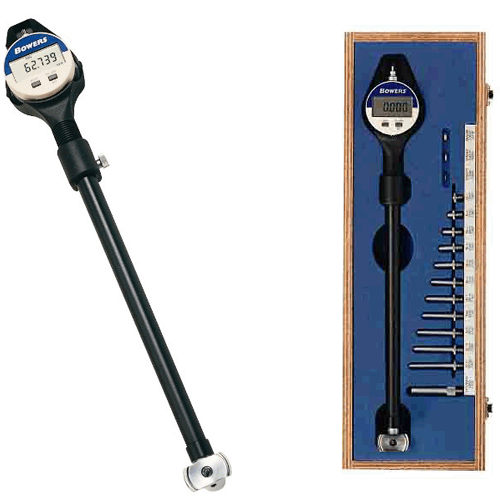

Digital Cylinder Bore Gauge

Bowers Cylinder Bore Gauges now include an easy-to-use digital variant, bringing the benefi ts of a clear digital display and data output to this dependable gauge. Speed and accuracy is further increased by the ability of the instrument’s advanced electronics to ‘freeze’ and display the diameter of the bore after ‘sweeping’.

Features

•   Measuring range 12.5 mm – 600 mm  (1/2” - 24”)
•   Fast simple checking for bore size, ovality, taper, etc
•   0.002mm/ 0.0005”, 0.01mm/ 0.0001” Dial gauge options (on mechanical system)
•   0.001mm/ 0.00005”, 0.01mm/ 0.0005” switchable (on digital system)
•   Tungsten carbide contact points
•   Lightweight glass reinforced nylon gauge shroud for extra strength and  protection
•   Thermally insulated for extra stability
•   RS232 output (on digital system)
•   Inch/metric conversion (on digital system)
•   Displays actual bore diameter or comparative results (on digital system)
•   Bore gauges available up to 3m (10 feet) long for deep hole measurement
