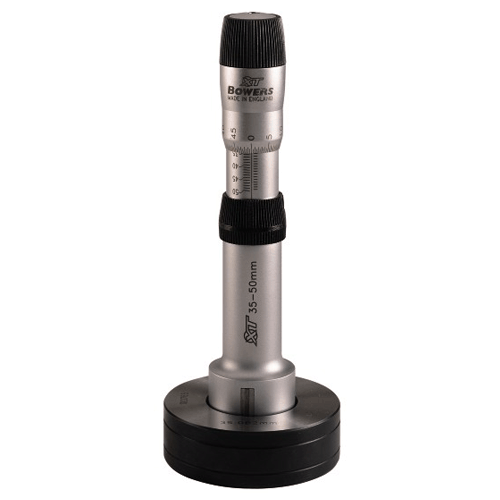

XTA Analogue Bore Gauges

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-fl oor bore measurement. Their wide application range, 2 – 300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certifi cation.

Features:

• Range 2 – 300 mm (0.080” – 12”)
• 2 – 6mm 2 point / 6 – 300mm 3 point measurement
• Resolution: 2-6mm: 0.001 / 6-300mm: 0.005mm
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
• Extensions available above ø 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
•
• Setting rings included with individual instruments and sets
• UKAS certifi cates supplied as standard with all setting rings
• UKAS certifi cate supplied as standard with all XT mechanical micrometers
• Serial number on all gauges
•  Bore gauges manufactured according to DIN 863, part 4
