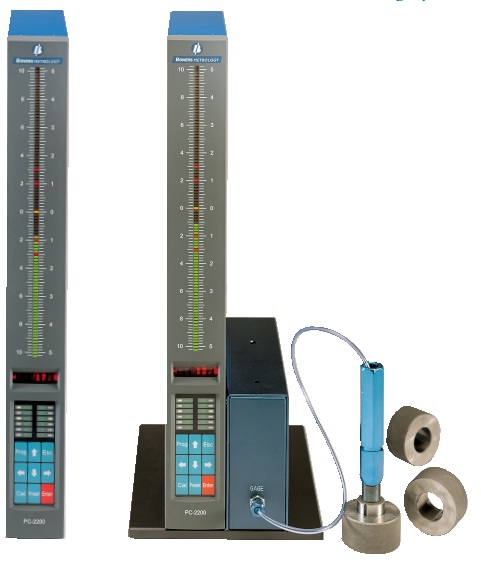

PC 2200 Air/Electronic Column

The PC 2200 is a state of the art fl exible electronic/air column capable of operating with  air gauging products and measuring probes. The advanced new column contains a multitude of measuring functions including static and dynamic gauging, classifi cation grading, probe mixing, (A+B), (A-B), etc.

Features:

•  Metric/Imperial
•  3 colour LED display
•  Digital display
•  Status indicator
•  2 probe input
•  4 probe input option
•  Probe mixing, (A+B), (A-B), etc.
•  Compatible with most electronics probes
•  Air convertor option (1 or 2)
•  Dynamic mode Max, Min, TIR, etc.
•  Tolerance limit setting
•  Approach limit setting
•  Calibration, single or Max/Min
•  Accuracy 0.5% full scale +/- resolution
•  6 range settings
•  Resolution 0.1um (5 settings)
•  Grading (1-100)
•  RS-232 output
•  Can be linked to PLC or Logic controller
•  Dual supply voltage (220/110 volt)
