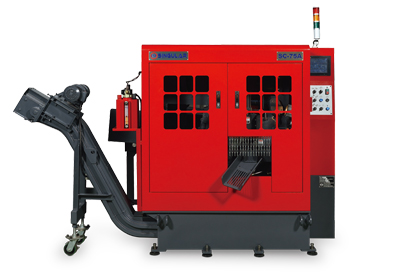

• Singular circular saw machine

  • Product Code: SC-75A
  • Manufacturer: Singular
  • Original: Taiwan
  • Warranty: 12 tháng
  • Price: 00 vnđ




CIRCULAR SAW - SC/75/100/150A SC-75/100/150A

SPECIFICATIONS
MODEL SC-75A SC-100A SC-150A
CUTTING
CAPACITY
8~75mm 10~102mm 65~155mm
W8×H8~W60×H60mm W10×H10~W80×H80mm W65×H65~W105×H105mm
BLADE MOTOR 10 HP 15 HP 20 HP
HYDRAULIC PUMP MOTOR 2 HP 3 HP 3 HP
BLADE SPEED 30 ~ 150 rpm 30 ~ 150 rpm 30 ~ 150 rpm
BLADE SIZE
( ∮ x kerf x Thickness)
285 x 2.0 x 1.75 mm 360 x 2.6 x 2.25 mm 460 x 2.7 x 2.25 mm
BLADE FEED Servo Motor and Ball Screw Servo Motor and Ball Screw Servo Motor and Ball Screw
BAR FEED Servo Motor and Ball Screw Servo Motor and Ball Screw Servo Motor and Ball Screw
AUTOMATIC FEED LENGTH SINGLE 6 ~ 600 mm 6 ~ 600 mm 6 ~ 600 mm
MULTIPLE 3,000 ~ 6,000 mm 3,000 ~ 6,000 mm 3,000 ~ 6,000 mm
AUTOMATIC CHIP CONVEYOR Chain Type Chain Type Chain Type
COOLING Air Compressed Oil Mist Air Compressed Oil Mist Air Compressed Oil Mist
MACHINE WEIGHT
WITH TABLE
2,800 kg 3,600 kg 4,200 kg
FLOOR SPACE
(MACHINE WITH TABLE)
W2,765 x L6,755 mm W2,850 x L6,890 mm W3,120 x L,7230 mm
☆For technical demand,product specifications and equipments/accessories are subject to change without notice.



Standard Equipments & Accessories
1 PLC Control for Electric & Hydraulic Functions.
2 Easy Conversational HMI.
3 Infinitely Variable Blade Speed Controlled by Inverter.
4 Hydraulic Front & Vertical Vises.
5 Floating Shuttle Device.
6 Hydraulic Sorting Chute.
7 Electro-Magnetic Powder Brake.
8 Automatic Chip Conveyor.
9 Power Wire Brush.
10 Air Blow Device For Tube Cutting.
11 Automatic Loading Table for Round Bar.
12 Cutting Mist Oil - 5 Gallons.
13 Work Lamp.
14 One Set of Tools in Tool Box.

Optional Equipments
1. Oil Mist Filter.
2. Variable Vise Pressure.
3. Air Compressor.
☆For technical demand,product specifications and equipments/accessories are subject to change without notice.
