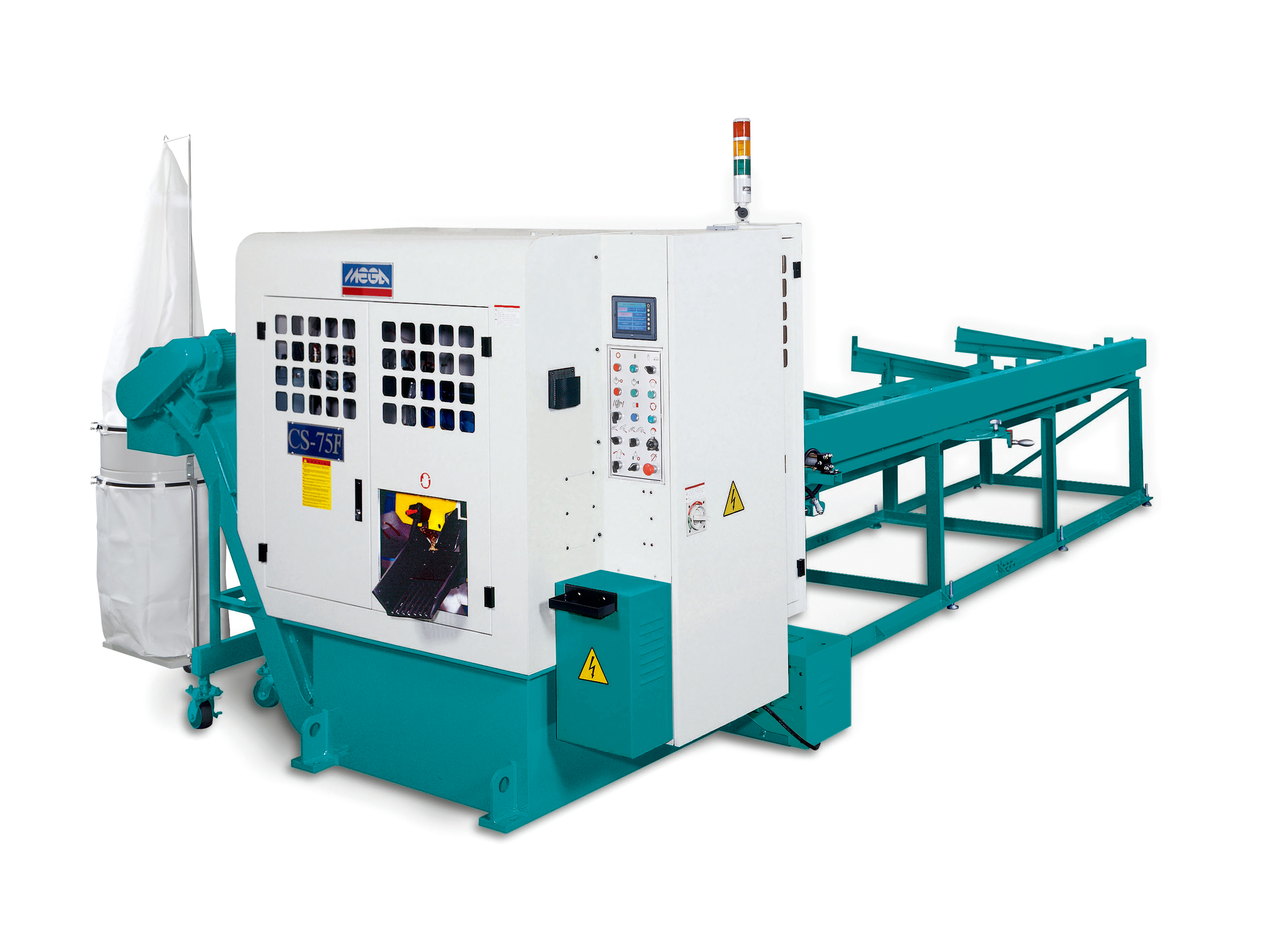

• Mega circular saw machine

  • Product Code: CS75
  • Manufacturer: Singular
  • Original: Taiwan
  • Warranty:
  • Price: 00 vnđ

MECHATRONICS CONTROL
High speed precision cutting with an almost ground finish surface and excellent repeatability has been made possible by numeric control, servo motor feeding cut-off and bar feed, and vastly improved carbide saw blade.
CUTTING FASTER
Designed especially for cutting nonferrous metal, such as aluminum alloy, copper, plastic steel. 10 times faster than cutting by machine with conventional HSS blade.
ENHANCE BLADE SERVICE LIFE
Rigid structure and anti- vibration design ensure excellent and accurate repeatability with finishing cut surface for high-speed cutting and longer saw blade life.
LESS MATERIAL CONSUMING
Vastly improved carbide saw blade is thinner, achieving less material consuming and resulting in less blade wear and less power consumption.

SPEC. / MODEL
CS-75F
Cutting Capacity mm   8 ~ 75     15 ~ 60
in   0.31 ~ 2.95   0.6 ~2.36
Motor Output HP Blade-10/2P , Hydraulic Pump-2 , Bar Feed Servo -0.65,
Servo Feedrate -1.13, Vacuum Chip Collector-1 (Opt.) ,

Debris Blower- 0.5
KW Blade-7.5/2P , Hydraulic Pump-1.5 , Bar Feed Servo -0.5,
Servo Feedrate -0.85, Vacuum Chip Collector-0.75(Opt.) ,

Debris Blower- 0.38
Blade Size mm ø305 x ø25.4 x T 2.6
in ø12 x ø1 x T 0.09
Blade Speed rpm 3000 - 5500
Blade Feed Cut . AC Servo Motor + Ball Screw
Bar Feed . AC Servo Motor + Ball Screw
Auto Feed Length mm Single Feed 6~600 /Multiple Feed 600~9999
in
Single Feed 0.23~23.62 /Multiple Feed 23.62~393.6
Auto Chip Conveyor .
Chain Belt Chip Conveyor+Vacuum Chip Collector (Opt.)
Cooling System . Air Compressed Oil Mist
Packing Size (L x W x H) mm 2290 X 2240 X 2130
ft 7.51 X 7.35 X 6.99
 N.W./ G.W. kg 2300 / 2450  ( With Pallets)
lb 5060 / 5390 ( With Pallets)
